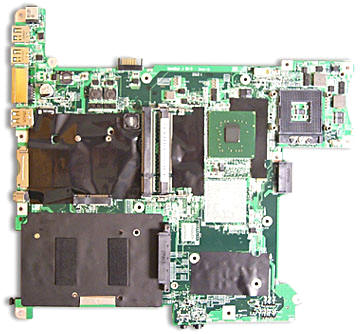

GATEWAY 945GM SYS BRD W/ 1394 (ROHS)

GATEWAY 945GM SYS BRD W/ 1394 (ROHS), 31ma7mb0000

SPECIFICATIONS:

BOARD HAS:

1. INTEL 945GM CHIPSET

2. INTEL GMA 950 DMVT VIDEO CHIP

BOARD TAKES:

1. INTEL CORE DUO CPU

2. MAX 4GB DDR2 RAM

   APPLICABLE PART NUMBER(S): 4006126, 4006126R, 106832, 31MA7MB0000




   THE MA7 MOTHERBOARD WILL WORK IN THE FOLLOWING GATEWAY LAPTOPS:

   GATEWAY MT6221j, MT6821, MT6823b, MT6824b, MT6825b MOTHERBOARD (SYSTEMBOARD)
   GATEWAY MP6954, MP6954H MOTHERBOARD (SYSTEMBOARD)

   GATEWAY MX6217j MOTHERBOARD (SYSTEMBOARD)

   GATEWAY MX6912, MX6919, MX6920, MX6920h, MX6921b, MX6922b,
   MX6923b, MX6924j, MX6926b, MX6927, MX6930, MX6930h, MX6931,
   MX6932b, MX6933b, MX6935m, MX6936m, MX6937m, MX6938m, MX6939m,
   MX6941m, MX6942m, MX6943m, MX6944m, MX6945m, MX6947m, MX6952j,
   MX6955, MX6956, MX6957, MX6958, MX6959, MX6960, MX6961, MX6961H,

   MA7 MOTHERBOARD (SYSTEMBOARD)

   GATEWAY NX510S, NX510X, NX570XL, NX570X, NX570QS MOTHERBOARD
   (SYSTEMBOARD)

NOTE: USE THIS MOTHERBOARD TO REPLACE ONE
WITH A DEFECTIVE DC (POWER) JACK. IN MOST
CASES WHEN THE UNIT WILL NOT POWER FROM
THE AC ADAPTER BUT WILL DO SO FROM A BATTERY,
THE PROBLEM IS NOT AS SIMPLE AS REPLACING THE
POWER JACK. THIS IS A BOARD LEVEL REPAIR.

CONDITION: GRADE A FROM 100% WORKING SYSTEM
WARRANTY: 60 DAYS
